Description
The 2410 Brick Fuse is a very high current fuse designed for high operating current applications. With its low temperature rise and excellent temperature stability characteristics, it is ideal to be used in datacom and telecom equipment such as high end server, base station, power supplies, and blade computing applications.
The 2410 Brick Fuse series offers high-amp circuit protection, ultra-high interrupting ratings and small size and surface-mount form factor to help space saving. This high-current SMD fuse is a small, square, surface mount fuse that is designed as supplemental over current protection for high-current circuits in various applications.
Catalog Symbol | Size | Rated Voltage(V) | Ampere Range | Agency | Dimensions | Material | Opening Time | |
AC | DC | |||||||
2410.01 | 2410 | 300/250/125 | 125/72/63 | 0.5-40A | JDYX2.E365879 | 6.1*2.6*2.6mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | FAST ACTING |
2410.02 | 2410 | 250/125 | 125/72/63 | 0.5-7A | JDYX2.E365879 | 6.1*2.6*2.6mm | Body: Ceramic Terminal: Gold/Silver over-plated with Brass | SLOW BLOW |
Applications
?Low voltage drop ? High Reliability Solder less Fuse
? High pulse resistance ? Lead-free--compatible with lead-free solders
? And higher temperature profiles ? Halogen-free and RoHS compliant
? UL Recognized to UL248-1/14 ? Indicates compliance with Low-Voltage and RoHS Directives

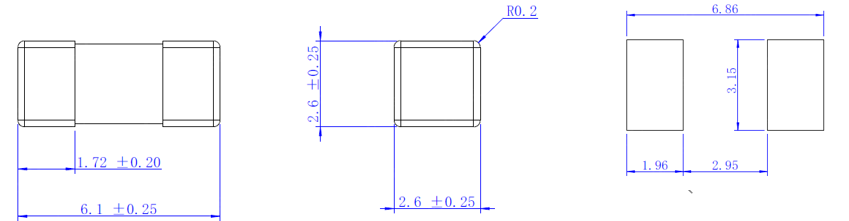

Dimensions(mm)
