GPV0005-0010(GPV5016-5021) 1500Vdc Size 2

Class of Operation: gPV

Rating:

Amps: 150-400A

Volts: 1500Vdc

Interrupting Rating: 50kA@1500Vdc

Standards/Approvals for Reference:

2 Designed to UL248-19/IEC60269-6/GB/T13539-6;

2 REACH declaration available upon request;

2 CE;

2 RoHS compliant.

Description: A range of square body PV fuses specifically designed for protecting and isolating photovoltaic array combiners and disconnects, are applied in recombiner boxes and inverters

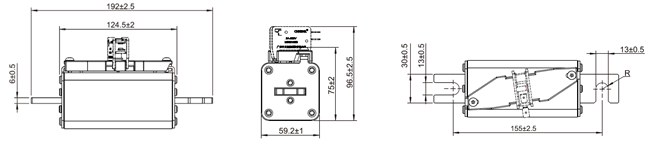

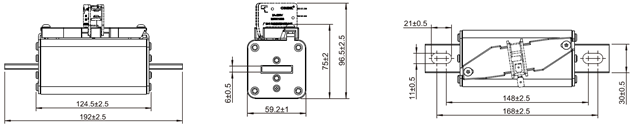

Cross-section: size 2 (59x59mm)

DIN 43 653, GPV0005-0010

US Style, GPV5016-5021

Catalogue Numbers
