PVFG Series 1500Vdc 10x65mm
Class of Operation: gPV
Rating:
Amps: 15-25A
Volts: 1500Vdc
Interrupting Rating: 30kA@1500Vdc
Standards/Approvals for Reference:
2 Approvals UL 248-19 Listed（2579）；
2 Environmental RoHS Compliant REACH
2 Body: Fiberglass
2 Terminations: Tin Plated Copper Caps
Description: CHNBEL series of 10x65 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings, are applied in combiner boxes, inverters.

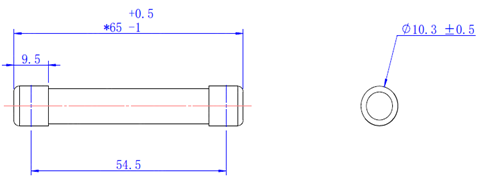

Dimensions(mm)
Catalogue Numbers
Amperage | ORDERING | VOLTAGE | INTERRUPTING | WATTS LOSS | WATTS LOSS | MELTING | TOTAL | Approvals | ||
DC | AC | DC | TUV | UL | ||||||
15 | PVFG-15A150 | 1500 | - | 30kA | 1.30 | 2.20 | 120 | 405 | ● | ● |
20 | PVFG-20A150 | 1500 | - | 30kA | 1.80 | 3.10 | 230 | 960 | ● | ● |
25 | PVFG-25A150 | 1500 | - | 30kA | 2.40 | 5.00 | 340 | 1450 | ● | ● |
